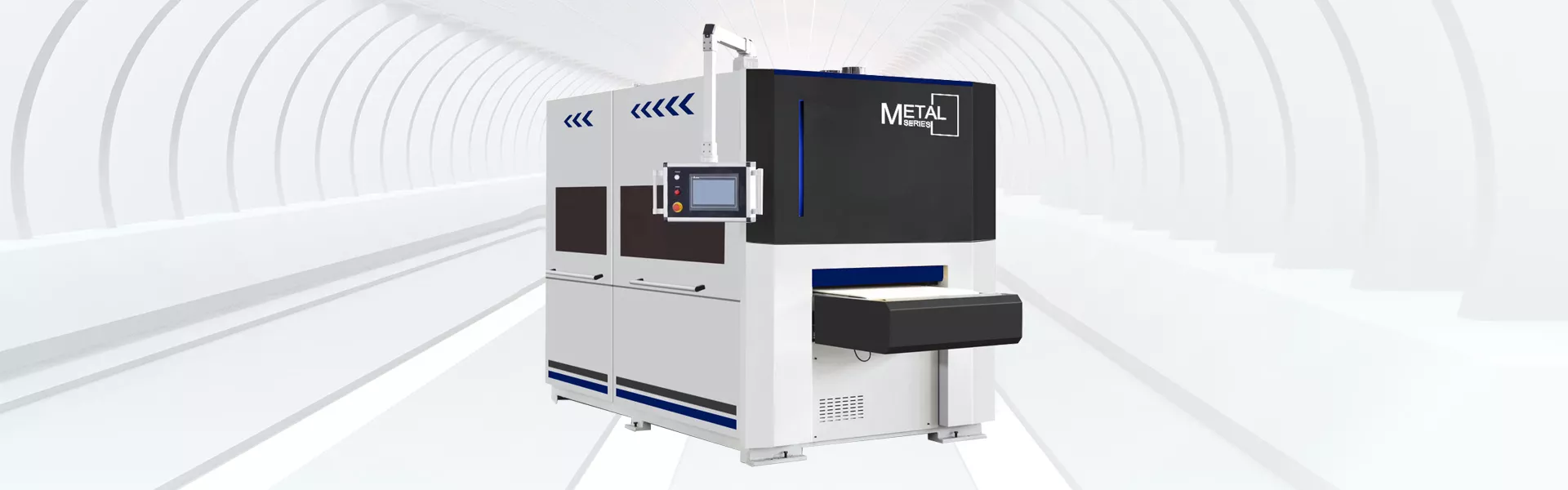

SR-DCP Deburring/Chamferring/Polishing Machine all-in-one
Model：SR-DCP
Category：Metal Deburring Machine
Brand：Jinan SR-Tech
Lead time：15-20working days
Warranty：2 years
whatsapp
INTRODUCTION
Technical parameters
MODEL NO. | SR-DCP |
Conveyor Table Width | 800mm/1000mm/1300mm/1500mm/1600mm |
Conveying Table Method | Magnetic Adsorption/Vacuum Adsorption |
Processing Thickness | 0.5-80mm |
Minimum Processing Size | Vacuum Adsorption:50*50mm/Strong Magnetic Adsorption:10*10mm |
Feeding Speed | 1-10m/min（Frequency Adjustable） |
Belt Speed | 1-1400r/min（Optional Frequency Conversion） |
Polishing Roller | 1-1400r/min（Frequency Adjustable） |
Voltage | 380V/50HZ/60HZ 220V/50HZ/60HZ |
Machine details
Polish Roller
Delta PLC
High temperature resistant conveyor belt
Heavy Machine Bed
Optional
- Dry dust collector
- Wet dust collector
Application:
Commonly used in metal cutting, tool polishing, agricultural machinery, shipbuilding, food machinery, billboard production and other industries.
