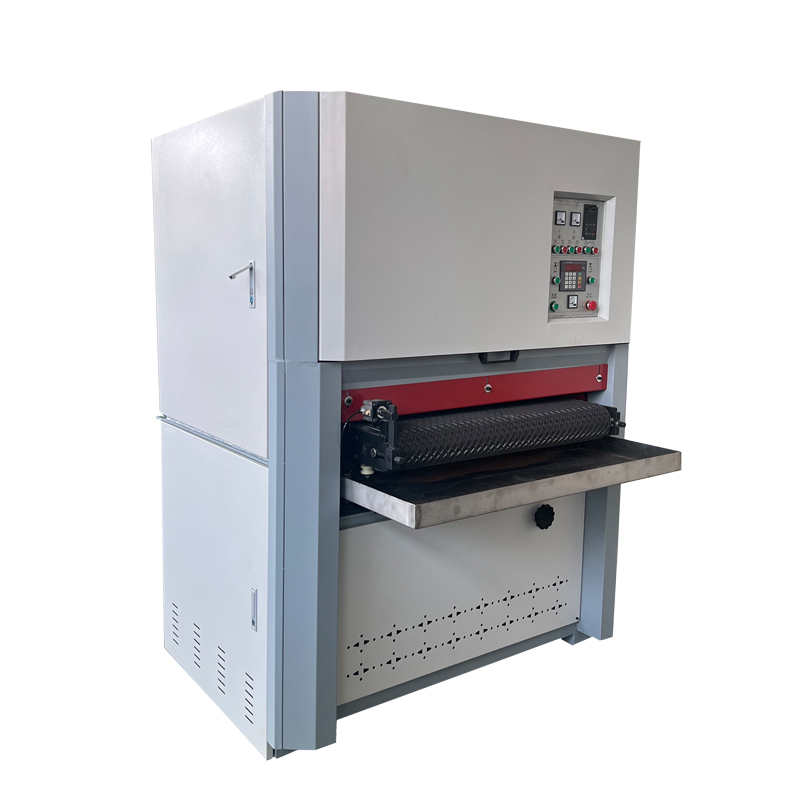

SR-W Flat Wet Deburring/Wire Drawing Machine
Model：SR-W
Category：Metal Deburring Machine
Brand：Jinan SR-Tech
Lead time：15-20 working days
Warranty：2 years
whatsapp
INTRODUCTION
Technical parameters
Model | SR-W |
Conveyor Table Width | 630mm/800mm/1000mm/1300mm/1500mm/1600mm |
Conveying Table Method | Magnetic Adsorption/Conventional Pressure Roller |
Processing Thickness | 0.5-80mm |
Minimum Processing Size | Carbon Steel：10*10mm Stainless steel, non-ferrous metals：L≥190mm |
Feeding Speed | 1-10m/min（Frequency Adjustable） |
Voltage | 380V/50HZ/60HZ 220V/50HZ/60HZ |
Machine details
Waterproof accessories
Delta PLC
Water cycle system
Heavy Machine Bed
Application:
The sanding belt rotates at high speed to remove burrs and fine slag from the metal surface. It is often used for wire drawing and descaling of stainless steel plates, aluminum plates, and copper plates. The machine contains a circulating water pump, so the workpiece will not be deformed by heat, and the surface of the workpiece will be more delicate after processing.
