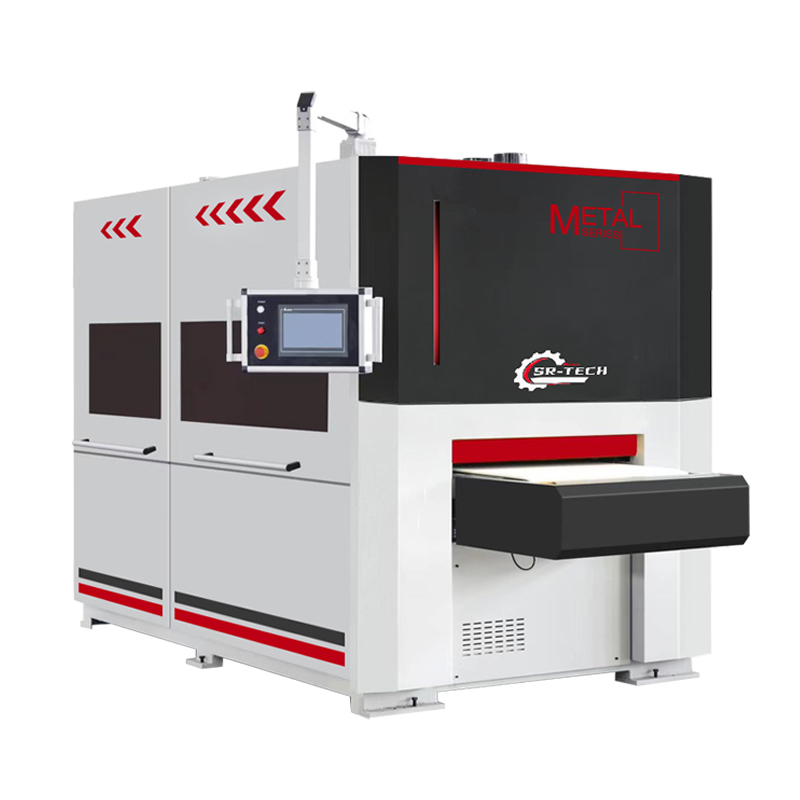

SR-DC Metal deburring machine
Technical parameters
MODEL NO. | SR-DC |
Processing width | 450mm/630mm/800mm/1000mm/1300mm/1500mm/1600mm as options |
Fixing method | pressure roller, magnetic suction. Negative pressure adsorption |
Transfer speed | 1-10m/min(adjustable frequency) |
Processing thickness | 0.5-80mm |
Minimum working size | magnetic attraction 30*30mm, Non-magnetic: 70*70mm |
Number of abrasive belts | As options |
Number of Roller brush | As options |
Roller speed | 0-1500r/min(adjustable frequency) |
Alternate speed | 0-80r/min(adjustable frequency) |
Rounding Capability | R0.5-1.5mm |
Voltage | AC380V/50/60HZ |
Power | 35kw-75kw depends on the machine model |
- Dry dust collector
- Wet dust collector
The sanding belt rotates at high speed to remove burrs and fine slag on the metal surface; the roller brush rotates and revolves to grind the sharp edges of the workpiece, making the inner edge of the workpiece surface smooth and round, and producing uniform chamfers. It is suitable for metal cutting parts, stamping parts, plasma cutting parts, flame cutting parts, etc.
