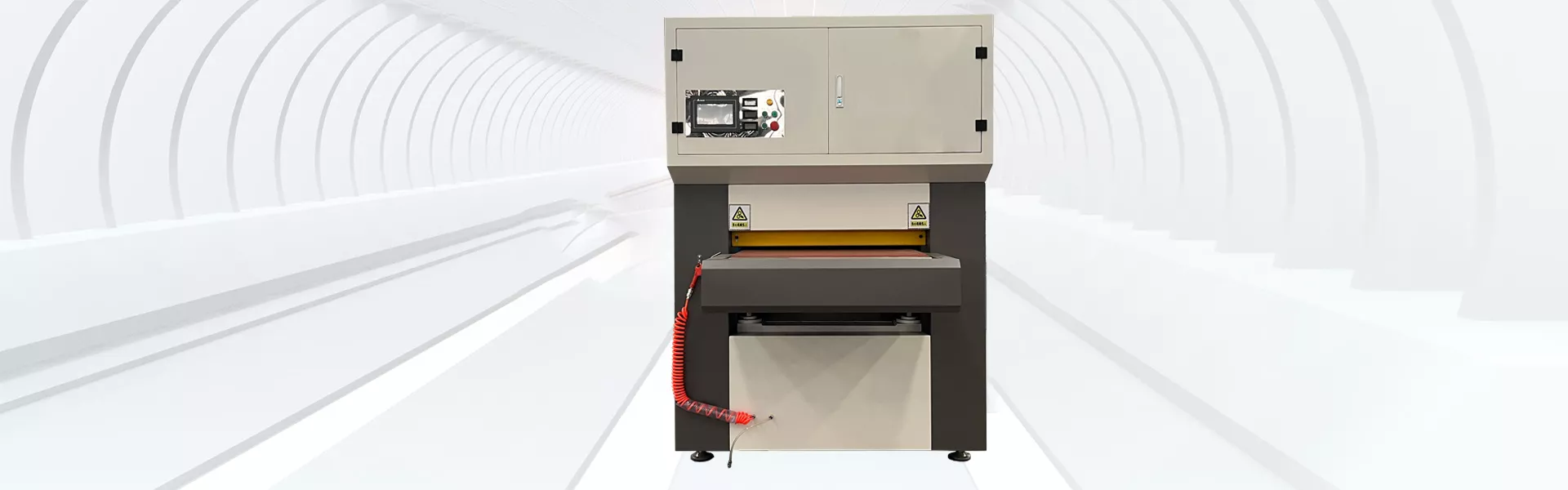

SR-S Surface Deburring Machine
Model：SR-S
Category：Metal Deburring Machine
Brand：Jinan SR-Tech
Lead time：15-20working days
Warranty：2 years
whatsapp
INTRODUCTION
Technical parameters
Model | SR-S |
Conveyor Table Width | 630mm/800mm/1000mm/1300mm/1500mm |
Processing Thickness | 0.5-80mm |
Conveying Table Method | Magnetic Adsorption/Vacuum Adsorption/Conventional Pressure Roller |
Feeding Speed | 1-10m/min（Frequency Adjustable） |
Abrasive Belt Speed | 1-1400r/min（Optional Frequency Conversion） |
Lifting Servo Drive | Accuracy±0.01mm |
Voltage | 380V/50HZ/60HZ 220V/50HZ/60HZ |
Machine details
Durable double belt structure
Delta PLC
High temperature resistant conveyor belt
Heavy Machine Bed
Optional
- Dry dust collector
- Wet dust collector
Application:
Mainly used to remove large slag produced by flame cutting and high power laser cutting of medium and thick plates.
