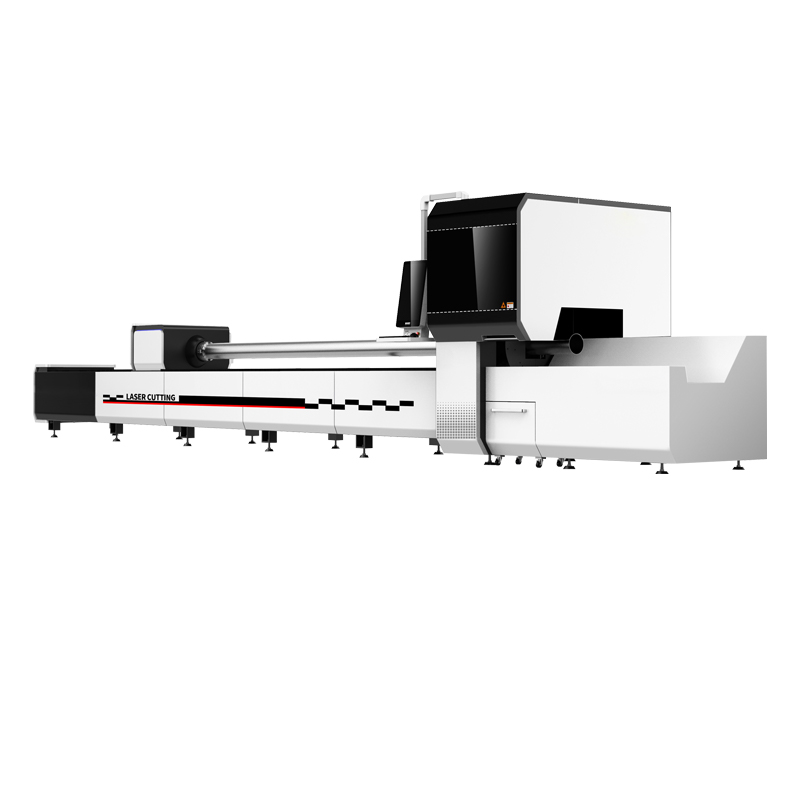

SRF-P Pipe Cutting Fiber Laser Machine
Model：SRF-P
Category：Fiber laser cutting machine
Brand：Jinan SR-Tech
Lead time：25-30 working days
Warranty：2 years
whatsapp
INTRODUCTION
Technical parameters
Model | SRF-160P SRF-230P SRF-350P |
Work Diameter | Diameter: 20-160 mm/ 20-230mm/20-350 mm; length: 6 m/7m/9m/12m |
Laser Power | 1000w,1500w,2000w,3000w,6000w as options |
Laser Source | Max/Raycus/IPG |
Acceleration | 0.8-1.4G |
Maximum movement speed | 80-140m/min |
Working Voltage | 380V/3PH/50/60HZ |
Machine details
Best brand Max laser source
High quality chuck
Taiwan HIWIN rails&YYC rack
Heavy Machine Bed
Application:
Materials: Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, cutting rare metals and other materials.
Industry: kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air conditioning, elevators, hotel metal supplies processing, etc.
